MS PFA

Predict When, Where and Why Failure Occurs

By nature of their construction, advanced materials may be tailored to address specific service requirements. GENOA MS-PFA is a reliable methodology that employs a full-hierarchical modeling that goes down to the micro-scale of sub-divided unit cells composed of fiber bundles and their surrounding matrix to assess the behavior of constituent materials subject to load.  In this environment, GENOA provides engineers with the predictive computational technology to assess mechanical performance of advanced composite structures subject to static, dynamic, fatigue, and impact loadings

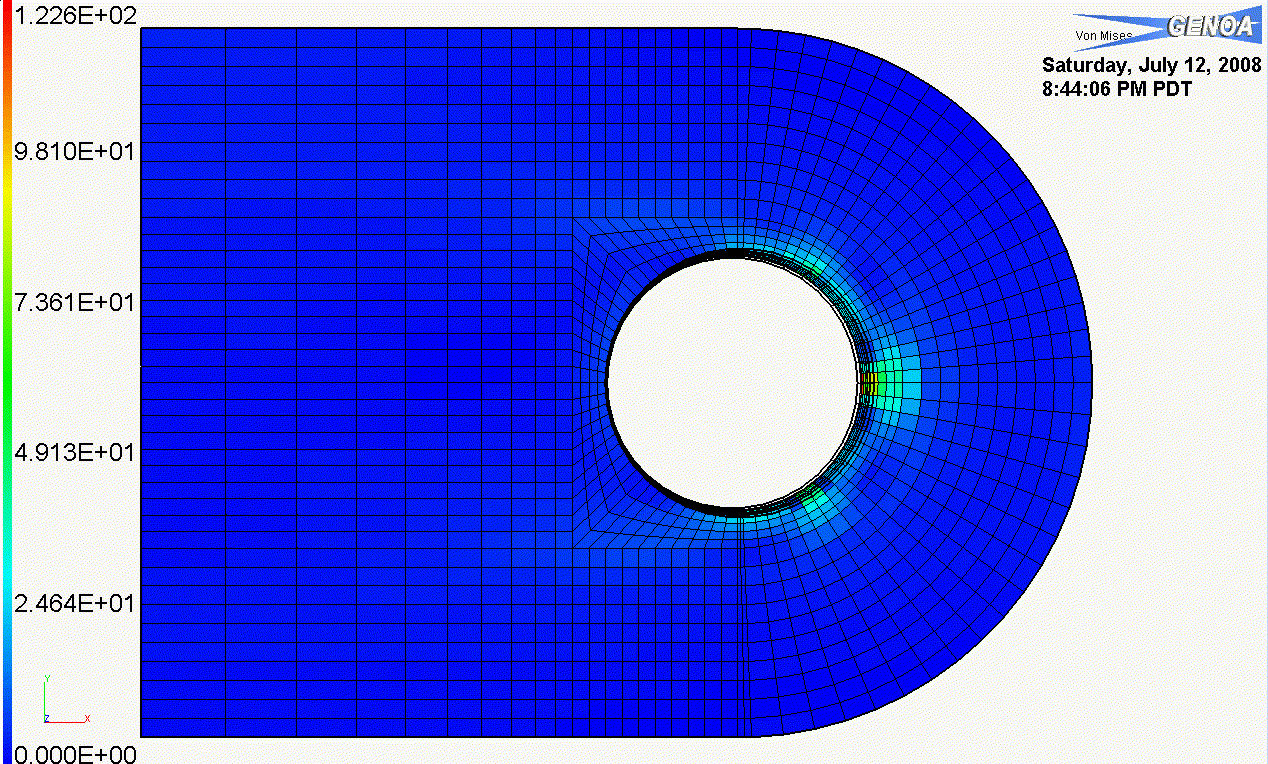

MS-PFA

Using GENOA MS-PFA with a commercial FEA solver, engineers are able to:

  • Access or Utilize ASTM Test Validate Models

  • Augment finite element analysis (FEA) with multi-scale composite mechanics

  • Track damage initiation and fracture propagation

  • Predict and simulate all 5 stages of the damage process.

  • Switch solvers/boundary condition/analysis type before or after simulation while maintaining residual damage and stresses.

  • Calculates crack density, matrix micro-cracks, plies delamination, and fiber failure in compression and tension including micro-buckling.

  • Account for defects (void shapes and sizes), fiber waviness, and residual stresses –

  • Identify damage at the “root cause” of the composite in matrix and fiber using dedicated physics based damage/failure criteria.

  • Supports Failure Criteria (In-built and User Defined)

  • Obtain static solutions with NASTRAN, ABAQUS, ANSYS, OPTISTRUCT, LS-DYNA

Case Studies

Download the latest case study.

PDF-Icon

Datasheet

Download the latest datasheets.

Products Used for This Application

genoa_MS

GENOA is a durability & damage tolerance, progressive failure & reliability software that providing engineers with predictive computational technology that characterize and qualify advanced composite materials and structures.
